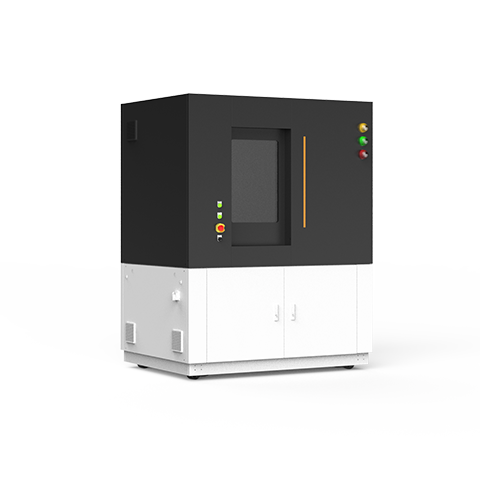

Tomo D
Product Details Technical Parameters

This system is currently the most compact and comprehensive teaching demonstration and laboratory CT system with the most complete degree-of-freedom axis system. It is specifically designed for educators and researchers who need to deeply understand CT co

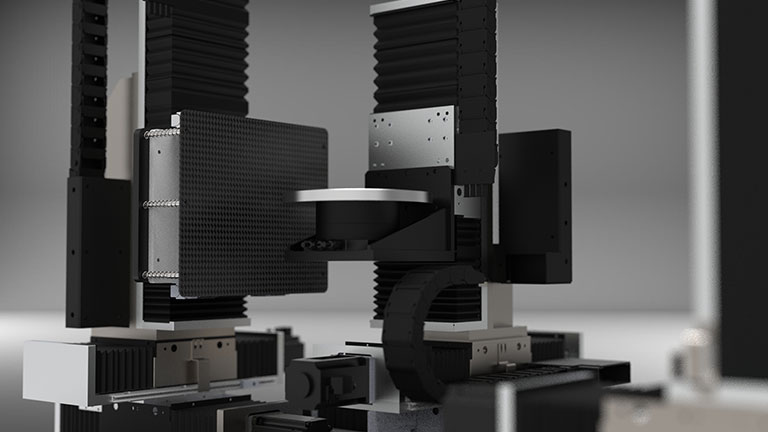

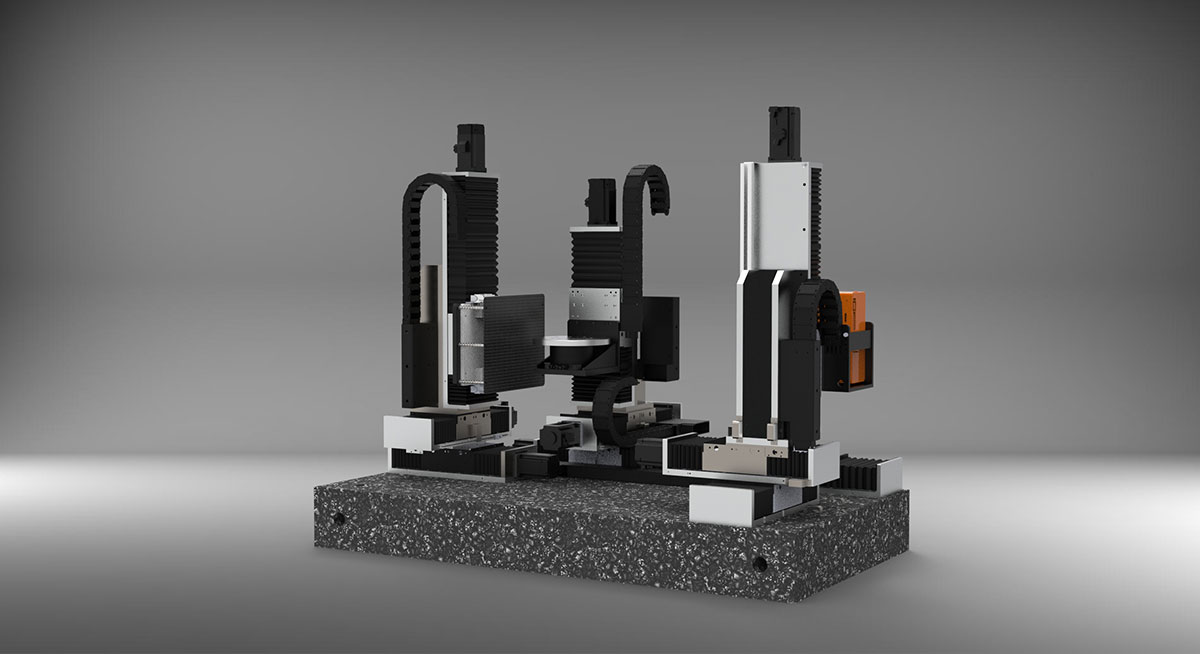

Up to 10-Axis Motion System

Extremely rich axis movements, with up to 10 degrees of freedom, are used to adjust different magnification and focal length combinations, adapting to various CT reconstruction modules or algorithms, thereby achieving the best detection conditions, method

Rich CT Reconstruction Functions

All CT reconstruction algorithms or combinations of multiple CT reconstruction algorithms can be completed for comparative analysis, achieving the most suitable detection methods for the objects under study.

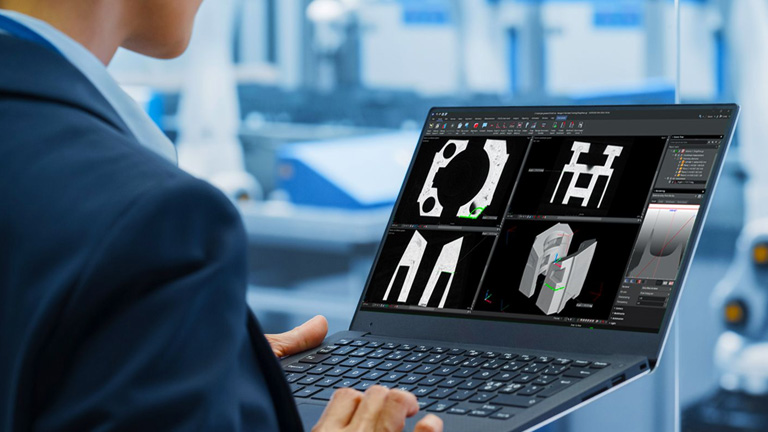

Continuous System Software Advancement

We place great emphasis on continuous improvement, committed to constantly developing new software features to enhance the performance of your industrial CT system, improving its detection accuracy and efficiency.

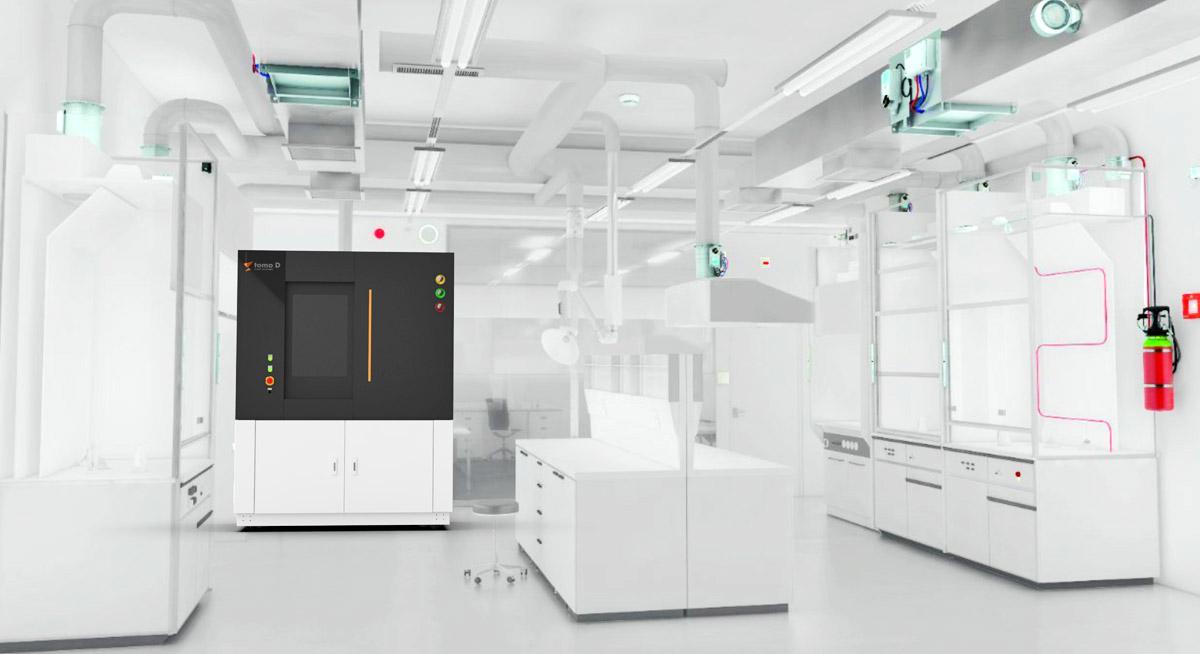

Integrated Design

The CT host, control unit, and lead room adopt an integrated design, making transportation and adjustment convenient and easy, saving laboratory space for you.
Tomo D
X-ray Source
Micro-focus tube voltage(Max.) 110kv/130kV
Focal Spot 10μm
Detector
Type Amorphous silicon flat panel detector
Pixel Size 75μm
Imaging Size ≥100*100mm
Mechanical System
Manipulation 6/7 axes
FDD ≥760mm
System Material Precision granite
Inspection Sample
Sample Size(Max.) Ø300×H300mm
Sample Weight(Max.) 10kg
Lead Cabinet
Size L1560×W1153×H2000mm
Weight ~4t
Software
Cone Beam DR/CT Scanning Reconstruction Detector Calibration Management Module/Detector Calibration Scanning Module/Batch DR Scanning Management Module/Batch DR Scanning Module/CT Scanning Mode Management Module (Standard Third-generation CT 3CT, Rotary Table Offset Extended Third-generation CT ROE3CT)/Batch CT Scanning Module/CT Reconstruction Module
2D Image Processing Basic image processing functions, marking measurement functions, enhancement functions/image/file output/database management etc
3D Image Display Data import, data management, CT data visualization, measurement annotation, data alignment, contour extraction, pore analysis, wall thickness measurement, CAD/physical object comparison/report module etc
