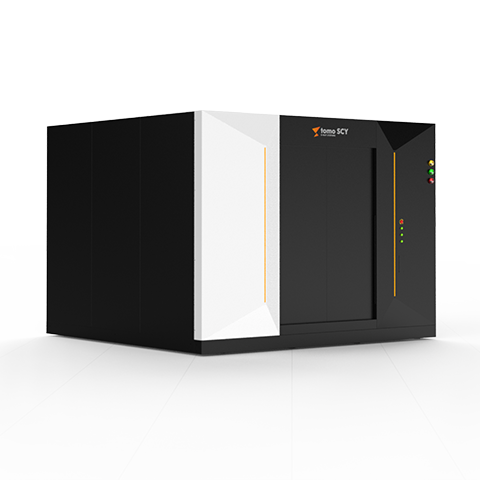

Tomo XL

Security & Large Integrated Components CT System

Contact us to learn more
Tomo XL
Product Details Technical Parameters

This system is a dedicated CT system for security fields or large integrated components. It has a wide range of applications and a large detection range, especially for security detection and analysis of daily necessities, electronic products, and other i

Rich X-ray Source Options

Can be configured with up to 600kV small-focus X-ray sources to meet your ideal selection for the best penetration, resolution, and scanning speed for samples of different densities, making it suitable for a wider range of scenarios.

Maximized Detection Range

Equipped with a large-size linear array detector, the length can reach 1330mm, and the maximum detection range for a single scan can reach 1000mm. It can also achieve large field-of-view scanning, increasing the detection range according to user needs.

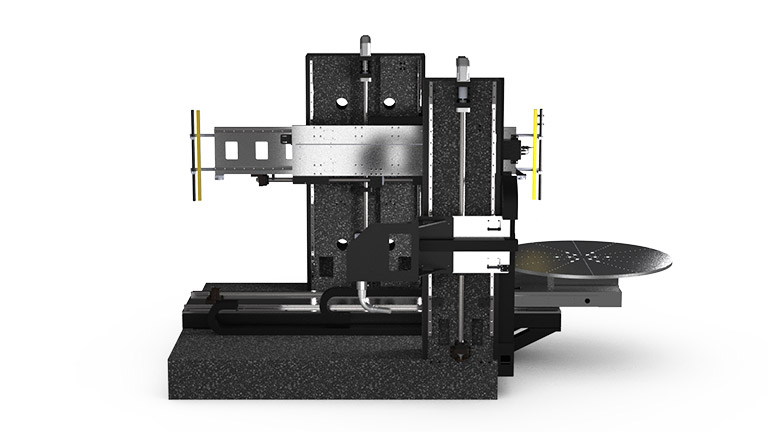

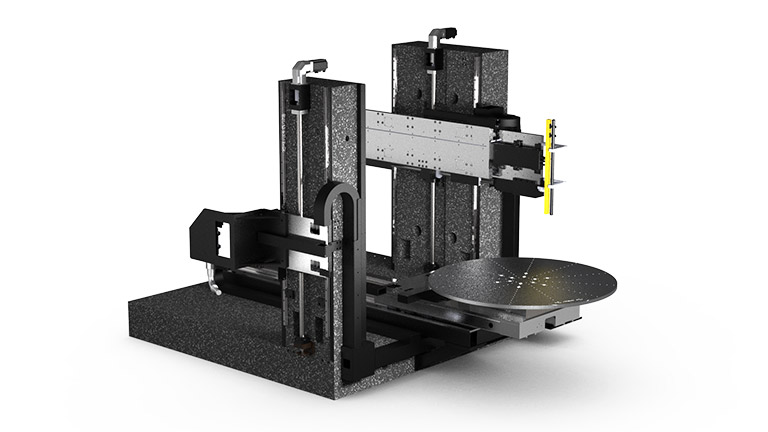

Flexible Motion System

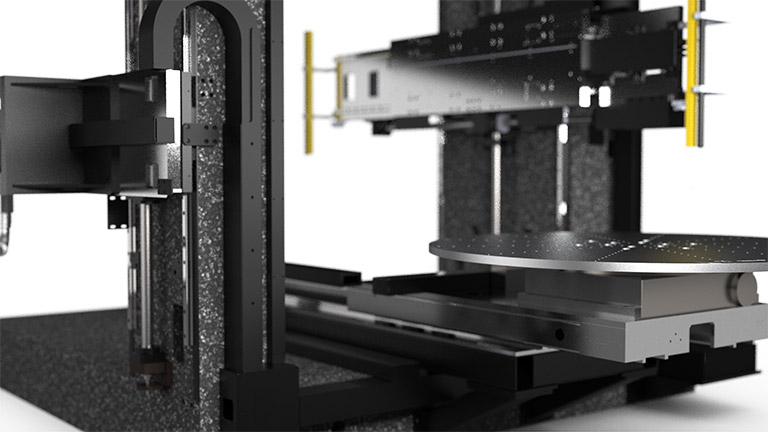

The rotating worktable can automatically move in and out of the lead room, making it easy to install, fix, and reposition the items to be inspected. The linear array detector axis system can meet the requirements for large field-of-view scanning.

Tomo XL
X-ray Source
Mini-Focus Tube Voltage(Max.) 225kV/320kV/450kV
Focal Spot 1 225kV: 0.4mm@700W/1.0mm@1500W (EN 12543)
Focal Spot 2 320kV: 0.4mm@700W/1.0mm@1500W (EN 12543)
Focal Spot 3 450kV: 60/100/250/350/450μm@50/100/250/350/450W
Focal Spot 4 450kV: 60/100/250/350/450μm@50/100/250/350/450W
Detector
Type 线阵探测器
Pixel Size 200μm
Imaging Size 1300mm
Mechanical System
Manipulation 4 axes
FDD 2300mm
System Material Precision granite
Inspection Sample
Sample Size(Max.) Ø1400×H1500mm
Sample Weight(Max.) 100kg[Customizable]
Lead Cabinet
Size L4000×W3500×H2800mm
Weight ~22t
Software
Cone Beam DR/CT Scanning Reconstruction Detector Calibration Management Module/Detector Calibration Scanning Module/Batch DR Scanning Management Module/Batch DR Scanning Module/CT Scanning Mode Management Module (Standard Third - Generation CT 3CT, Rotary Table Offset Extended Third - Generation CT ROE3CT)/Batch CT Scanning Module/CT Reconstruction Module
2D Image Processing Basic image processing functions, marking and measurement functions, enhancement functions/image/file output/database management etc
3D Image Display Data import, data management, CT data visualization, measurement annotation, data alignment, contour extraction, pore analysis, wall thickness measurement, CAD/physical object comparison/ report module etc
