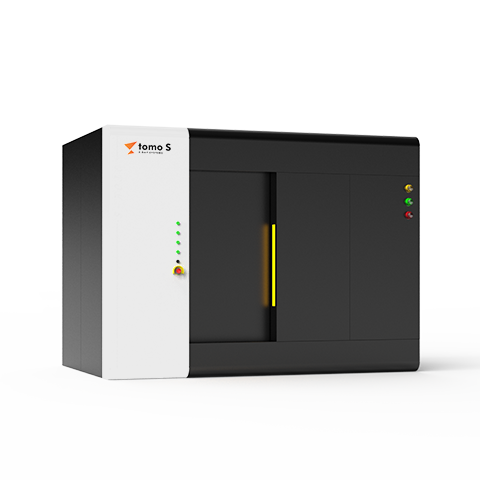

Tomo S

Small & medium workpieces CT system

Contact us to learn more
Tomo S
Product Details Technical Parameters

This system is a compact CT system that integrates functions typically found in larger-scale CT systems. It can be configured with microfocus or nanofocus X-ray sources, making it highly suitable for high-precision inspection of lightweight small workpiec

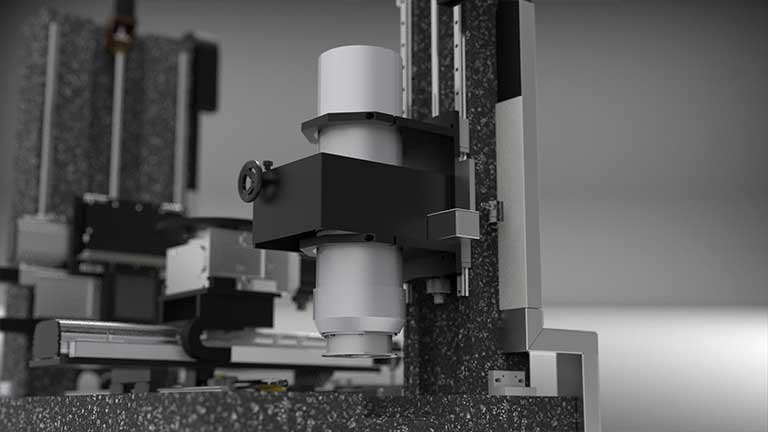

Rich X-ray Source Options

Can be configured with up to 240kV microfocus or 240kV nanofocus to meet your ideal selection for the best penetration, resolution, and scanning speed for samples of different densities.

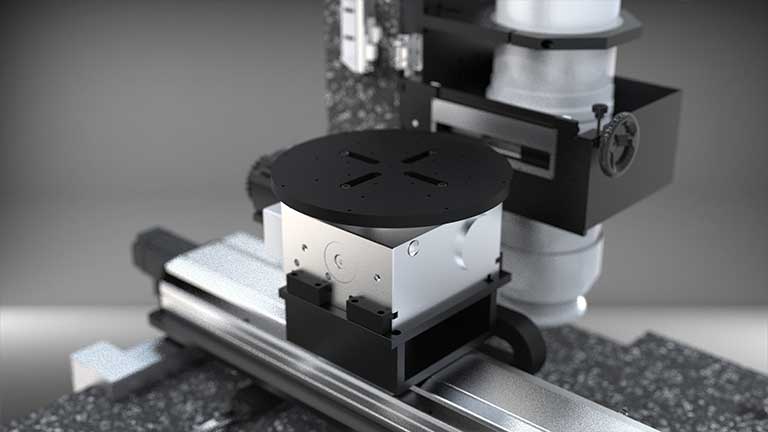

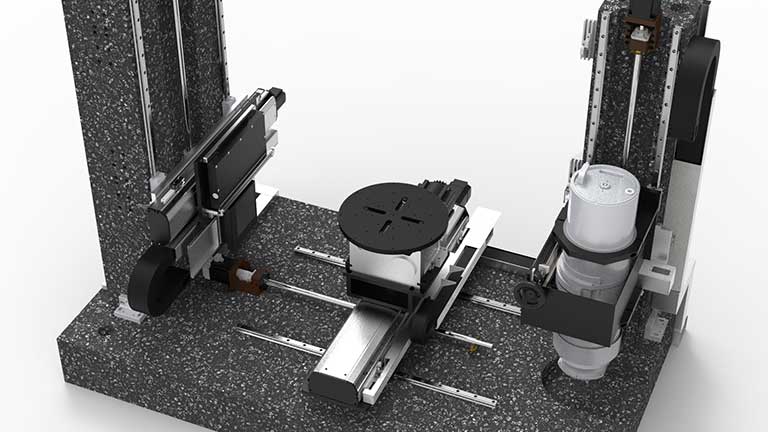

Metrology-grade Mechanical System

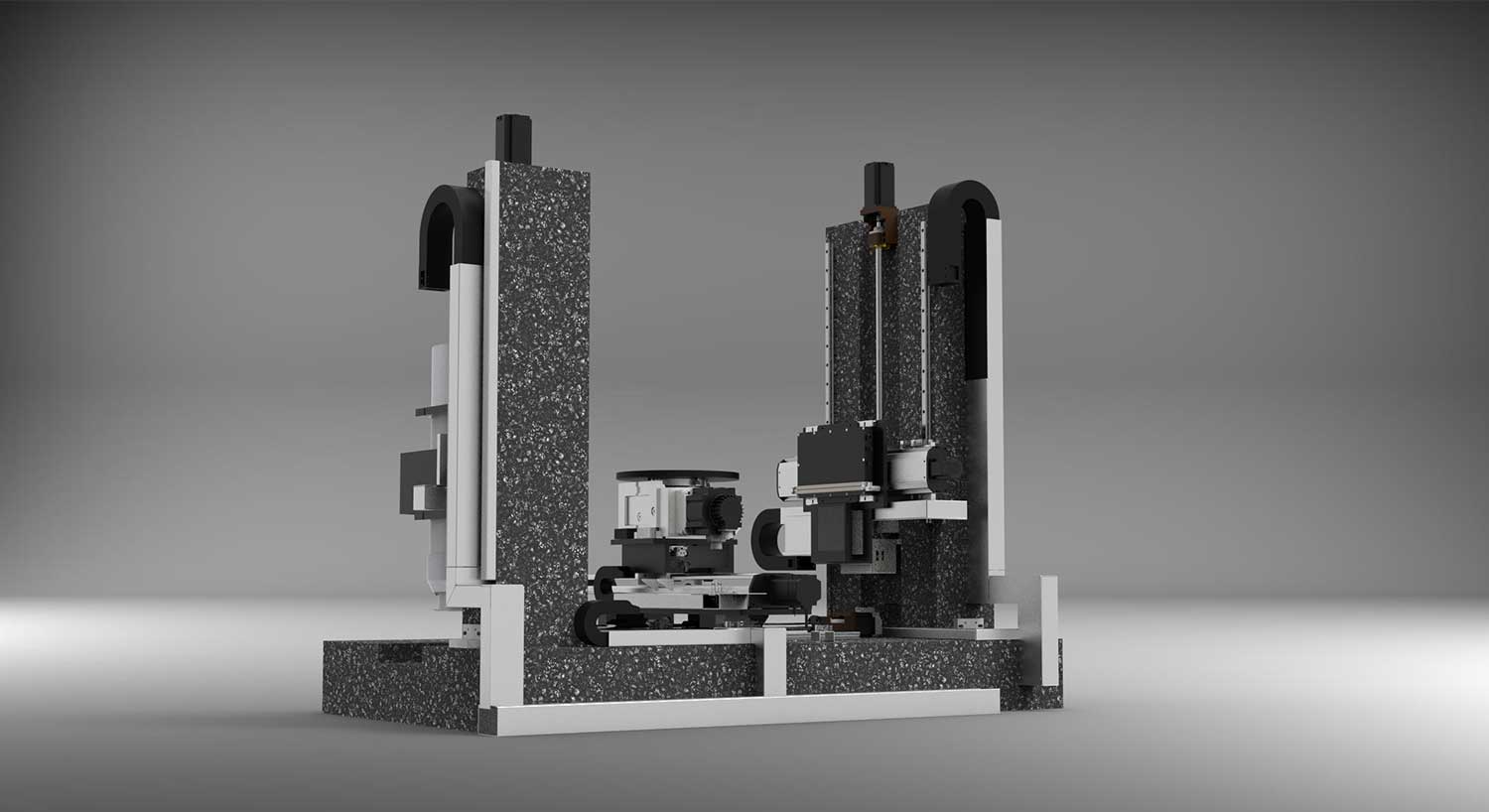

The base and column structure of the mechanical system are made of natural granite, known for its stability, providing higher positioning accuracy and repeatability, which is one of the essential requirements for metrology-type CT systems.

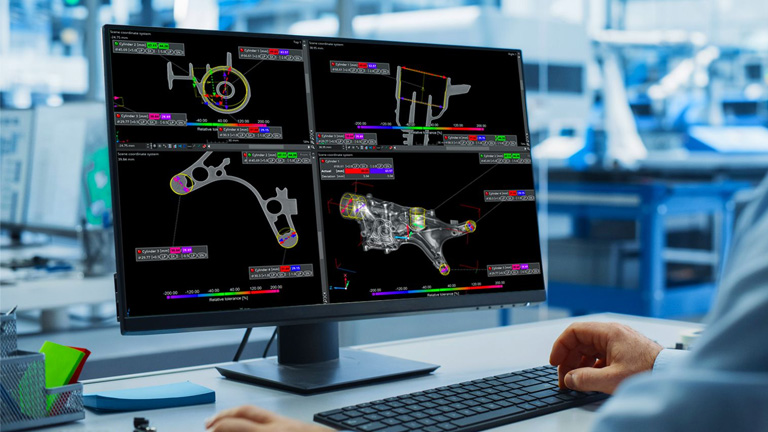

Powerful Image Enhancement and Correction Functions

Equipped with unique high-throughput industrial CT automatic correction tools, it can significantly improve the image quality of high-scattering materials such as steel and aluminum, as well as composite and multi-material samples. The software interface

Continuous System Software Advancement

We place great emphasis on continuous improvement, committed to constantly developing new software features to enhance the performance of your industrial CT system, improving its detection accuracy and efficiency.
Tomo S
X-ray Source
Micro-Focus Tube Voltage(Max.) 225kV/240kV
Nano-Focus Tube Voltage(Max.) 160kv/190kv[Option]
Focal Spot 4~6μm/1μm
Detector
Type Amorphous silicon flat panel detector | Linear array detector[Option]
Pixel Size 100μm/140μm/200μm | 200μm
Imaging Size ≥400*400mm | ≥520mm
Mechanical System
Manipulation 6 axes
FDD 1000mm
System Material Precision granite
Inspection Sample
Sample Size(Max.) Ø500×H500mm
Sample Weight(Max.) 50kg[Customizable]
Lead Cabinet
Size L3000×W1600×H2000mm
Weight ~12t
Software
Cone Beam DR/CT Scanning Reconstruction Detector calibration management module/Detector calibration scanning module/Batch DR scanning management module/Batch DR scanning module/CT scanning mode management module (Standard third-generation CT 3CT, Rotary table offset extended third-generation CT ROE3CT, Limited-angle CT LA3CT)/Batch CT scanning module, CT reconstruction module
2D Image Processing Basic image processing functions, marking measurement functions, enhancement functions/image/file output/database management etc
3D Image Display Data import, data management, CT data visualization, measurement annotation, data alignment, contour extraction, pore analysis, wall thickness measurement, CAD/physical object comparison/report module etc
