Tomo Industrial CT Drives Industry Innovation

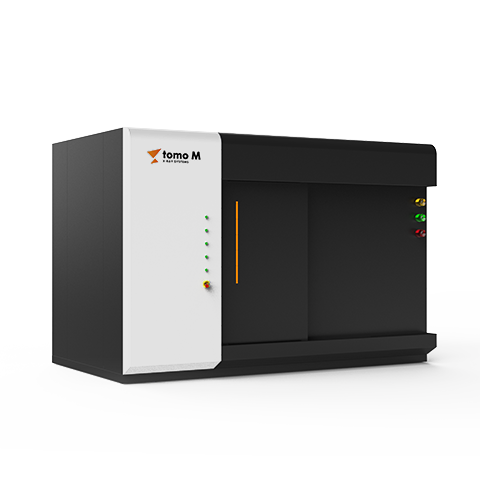

Tomo M

Medium & large workpieces/medium & high density CT system

Contact us to learn more
Tomo M
Product Details Technical Parameters

This system is a general-purpose CT system that can be configured with both microfocus and nanofocus X-ray sources, combining high penetration and high resolution. It is suitable for high-precision inspection of medium/small workpieces with medium/high de

Rich X-ray Source Options

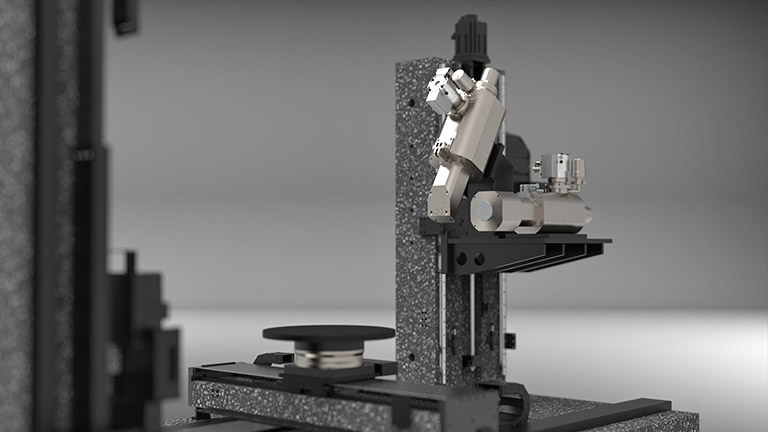

Can be configured with up to 300kV microfocus and 240kV nanofocus X-ray sources, allowing for one-click switching. It combines high penetration and high resolution.

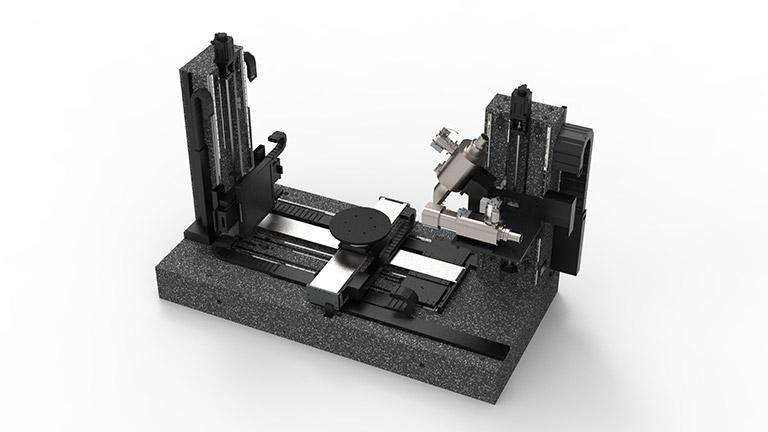

Metrology-grade Mechanical System

The base and column structure of the mechanical system are made of natural granite, known for its stability, providing higher positioning accuracy and repeatability, which is one of the essential requirements for metrology-type CT systems.

In-situ Loading Function

Can be equipped with an in-situ 4D loading system to observe the dynamic evolution process of internal material structures. It offers advantages such as non-destructive characterization, high resolution, simulation of various working conditions, and resto

AI-based Automatic Defect Recognition (ADR)

Compared to traditional ADR methods, our AI and big data-based ADR library offers higher accuracy and ease of use, significantly reducing the need for specialized skills in parameter setting. As the number of scanned samples increases, the algorithm becom
Tomo M
X-ray Source
Micro-Focus Tube Voltage(Max.) 225kV/240kV/300kV
Nano-Focus Tube Voltage(Max.) 160kv/190kv[Option]
Focal Spot 4~6μm/1μm
Detector
Type Amorphous silicon flat panel detector | Linear array detector[Option]
Pixel Size 100μm/140μm/200μm | 200μm
Imaging Size ≥400*400mm | ≥520mm
Mechanical System
Manipulation 7 axes
FDD ≥1500mm
System Material Precision granite
Inspection Sample
Sample Size(Max.) Ø800×H1000mm
Sample Weight(Max.) 50kg[Customizable]
Lead Cabinet
Size L3600×W2100×H2700mm
Weight ~19t
Software
Cone Beam DR/CT Scanning Reconstruction Detector Calibration Management Module/Detector Calibration Scanning Module/Batch DR Scanning Management Module/Batch DR Scanning Module/CT Scanning Mode Management Module (Standard Third - Generation CT 3CT, Rotary Table Offset Extended Third - Generation CT ROE3CT, Limited - Angle CT LA3CT)/Batch CT Scanning Module/CT Reconstruction Module
2D Image Processing Basic image processing functions, marking measurement functions, enhancement functions/image/file output/database management etc
3D Image Display Data import, data management, CT data visualization, measurement annotation, data alignment, contour extraction, pore analysis, wall thickness measurement, CAD/physical object comparison/report module etc
